Product

 ◆ DPM
Product Model Picture Parameter Explanation Download
AH800 AH800 Current Hour Meter--AH800
Technical Index: Adduction standard: GB/T 13970—1992 number meter basic parameter series GB 4793—84 safty requirement of electricity measurement meter Input current: DC 4mA—20mA (may selection) Input resistance: 50∩ Function of display: current 4 number (value should selection) Frequency: 0.1% (27℃) current hour 8 number (value should selection) Frequency: 0.1% (27℃) Temperature coefficient: 2.0*10-4/℃ (0℃--55℃) Working power supply: AC 220V 10% 45HZ—55HZ Function wastage:＜10W Isolation resist pressure: AC 2KV/50Hz@1min Creepage current : I ＜5mA Isolation resistance: DC 500V ＞10M∩ Figuration size: width 152mm*height 75mm*depth 135mm
WHM80 WHM80 Watt Hour Meter--WHM80
Technical Index: Adduction standard: GB/T 13970—1992 number meter basic parameter series GB 4793—84 safty requirement of electricity measurement meter Input requirement: Voltage channels DC 0V—5V(may selection) Input resistance: ＞20K∩ Current channels DC 0V—5V(may selecion) Input resistance: ＞20K∩ Function of display: voltage 4 number Frequency: 0.1% (27℃) current 4 number Frequency: 0.1% (27℃) power 5 number Frequency: 0.2% (27℃) power energy 5 number Frequency: 0.2% (27℃) Temperature coefficient: 2.0*10-4/℃ (0℃--55℃) Working power supply: AC 220V 10% 45HZ—55HZ Function wastage:＜10W Isolation resist pressure: AC 2KV/50Hz@1min Creepage current : I ＜5mA Isolation resistance: DC 500V ＞10M∩ Figuration size: width 152mm*height 75mm*depth 135mm

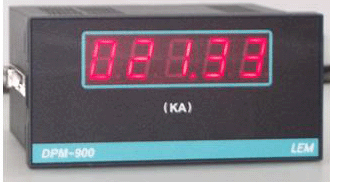

DPM 900 DPM 900 Number Display Meter--DPM 900
Technical Index: Adduction standard: GB/T 13970—1992 number meter basic parameter series GB 4793—84 safty requirement of electricity measurement meter Input current: DC 4mA—20mA (may selection) Input resistance: 50∩ Range of display: 00000—99999 (may decision) Frequency: 0.1% (27℃) Temperature coefficient: 2.0*10-4/℃ (0℃--55℃) Working power supply: AC 220V 10% 45HZ—55HZ Function wastage:＜10W Isolation resist pressure: AC 2KV/50Hz@1min Creepage current : I ＜5mA Isolation resistance: DC 500V ＞10M∩ Figuration size: width 152mm*height 75mm*depth 135mm
　
