Product

 ◆ LMG600
Product Model Picture Parameter Explanation Download

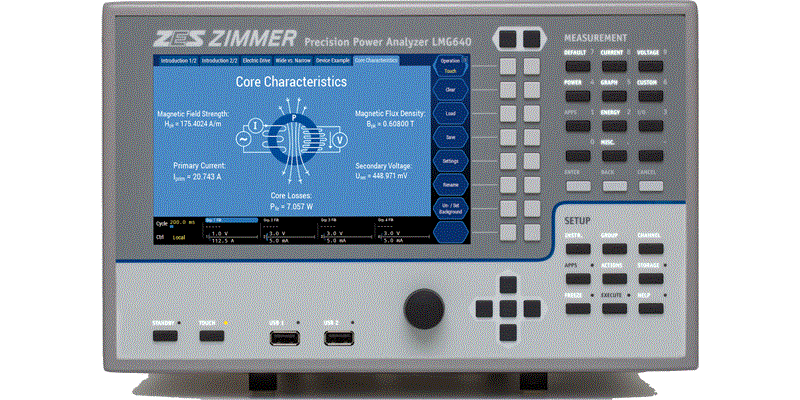

LMG640 LMG640 1to4Channel Power Analyzer--LMG640
Outstanding accuracy of 0.015% of measured value + 0.01% of range Full dynamic range of 500 µA to 32 A / 3 mV to 1000 V per channel available in single instrument Power measurements from standby to full load (max. 32 A) without mechanical changes Analog bandwidth DC up to 10 MHz Modular configuration with 1 to 4 power measurement channels (alternatively 3 channels + 1 I/O card) Gapless sampling up to 18 bit and cycle time <30 ms Delay time between V and I input < 3ns, very precise measurements at small power factors (PF) and/or high frequencies

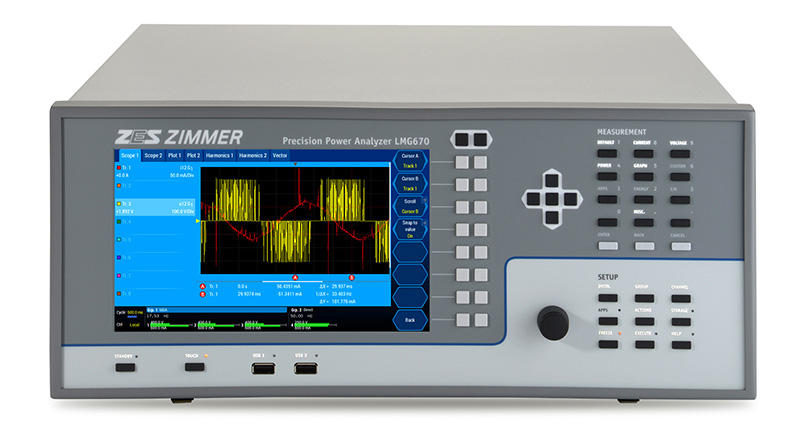

LMG670 LMG670 LMG6701 to 7 Channel Power Analyzer--LMG670
Outstanding accuracy of 0.015% of measured value + 0.01% of range Full dynamic range of 500 μA to 32 A / 3 mV to 1000 V per channel available in single instrument Power measurements from standby to full load (max. 32 A) without mechanical changes Analog bandwidth DC up to 10 MHz Modular configuration with 1 to 7 power measurement channels (alternatively 6 channels + 1 I/O card) Gapless sampling up to 18 bit and cycle time <30 ms Delay time between V and I input < 3ns, very precise measurements at small power factors (PF) and/or high frequencies
　
