| Product Model |
Picture |
Parameter Explanation |
Download |
| LT1005-S,LT2005-S,LF1005-S,LF2005-S,LT4000-S,LA205-S,LA305-S,LT308-S7,LT208-S7,LT108-S7,LT58-S7,LA100-P,LA200-P,LA55-P,LA25-NP,LV100,LV25-P,HAS100-S,HTR100-S,HOP-2000 |
 |

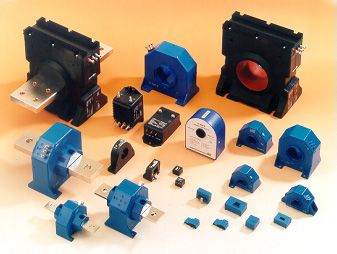

Industry Transducer of LEM--LT1005-S,LT2005-S,LF1005-S,LF2005-S,LT4000-S,LA205-S,LA305-S,LT308-S7,LT208-S7,LT108-S7,LT58-S7,LA100-P,LA200-P,LA55-P,LA25-NP,LV100,LV25-P,HAS100-S,HTR100-S,HOP-2000
|
|
| CV 3-1000 |
 |
CV 3-1000--CV 3-1000
Ouput Relay Type : Instantaneous
Technology : C-Type
Measurement : Voltage
Primary Nominal Value : 700 V
Accuracy : 0.2 %
Mounting : -
Measuring Range : 1000 V
Supply Voltage : 15 - 15
Supply voltage type Bipolar
Secondary Signal : 7000 mV
|
|
| AV100 Series |
 |
AV100 Series--AV100 Series
AV100-1000 Ouput Relay Type:Instantaneous Technology: Isolation Amplifier Measurement Voltage Cureent Primary Nominal value:1000 V Accuracy: 0.7 % Mounting : - Measuring Range:1500 V Supply Voltage: 12 - 24 Supply voltage type Bipolar Secondary Signal: 50 mA
|
|
| LV 100 |
 |
LV 100--LV 100
Ouput Relay Type : Instantaneous
Technology : Closed loop Hall Effect
Measurement : Current
Primary Nominal Value : Array[5] mA
Accuracy : 0.7 %
Mounting : -
Measuring Range : 20 mA
Supply Voltage : 15 - 15
Supply voltage type Bipolar
Secondary Signal : 50 mA
|
|
| LV 25-P |
 |
LV 25-P--LV 25-P
Ouput Relay Type : Instantaneous
Technology : Closed loop Hall Effect
Measurement : Current
Primary Nominal Value : Array[5] mA
Accuracy : 0.9 %
Mounting : -
Measuring Range : 0.014 A
Supply Voltage : 12 - 15
Supply voltage type Bipolar
Secondary Signal : 25 mA
|
|

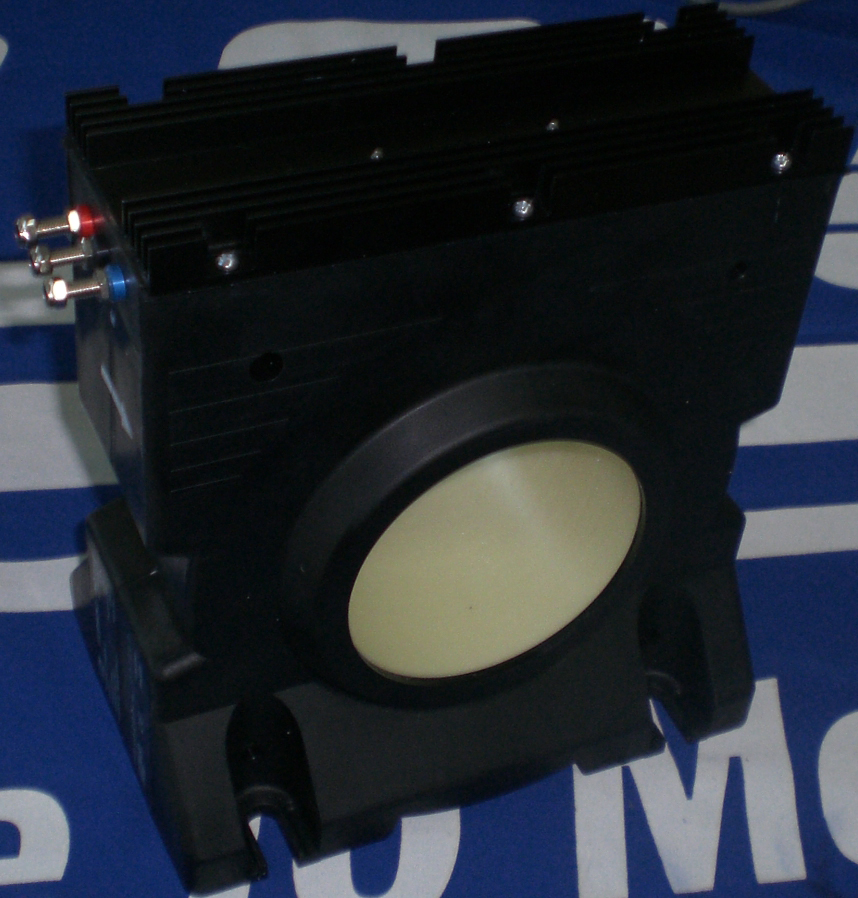

| LT4000-S |
 |
LT4000-S--LT4000-S
Ouput Relay Type: Instantaneous Thchnology:Closed loop Hall Effect Measurement: Current Primary Nominal Value: 4000 A Accuracy: 0.5 % Mounting : - Measuring Range:6000 A Supply Voltage: 24 - 24 Supply voltage type Bipolar Secondary Signal: 800 mA
|
|
| LF2005-S |
 |
LF2005-S--LF2005-S
Ouput Relay Type : Instantaneous
Technology : Closed loop Hall Effect
Measurement : Current
Primary Nominal Value : 2000 A
Accuracy : 0.3 %
Mounting : -
Measuring Range : 3000 A
Supply Voltage : 15 - 24
Supply voltage type Bipolar
Secondary Signal : 400 mA
|
|
| LT2005-S |
 |
LT2005-S--LT2005-S
Ouput Relay Type:Instantaneous Technology: Closed loop Hall Effect Measurement: Current Primary Nominal Value: 2000 A Accuracy : 0.3 % Mounting : - Measuring Range: 3000 A Supply Voltage: 15 - 24 Supply voltage type Bipolar Secondary Signal:400 mA
|
|
| LT1005-S |
 |
LT1005-S--LT1005-S
Ouput Relay Type:Instantaneous Technology: Closed loop Hall Effect Measurement: Current Primary Nominal Value: 1000 A Accuracy: 0.4 % Mounting: - Measuring Range 2000 A Supply Voltage15 - 24 Supply type Bipolar Secondary Signal:200 mA
|
|
| LF 1005-S |
 |
LF 1005-S--LF 1005-S
Ouput Relay Type : Instantaneous
Technology : Closed loop Hall Effect
Measurement : Current
Primary Nominal Value : 1000 A
Accuracy : 0.4 %
Mounting : -
Measuring Range : 1500 A
Supply Voltage : 15 - 24
Supply voltage type Bipolar
Secondary Signal : 200 mA
|
|
| LF505-S |
 |
LF505-S--LF505-S
Ouput Relay Type : Instantaneous
Technology : Closed loop Hall Effect
Measurement : Current
Primary Nominal Value : 500 A
Accuracy : 0.6 %
Mounting : -
Measuring Range : 800 A
Supply Voltage : 15 - 24
Supply voltage type Bipolar
Secondary Signal : 100 mA
|
|
| LT505-S |
 |
LT505-S--LT505-S
Ouput Relay Type: Instantaneous Technology: Closed loop Hall Effect Measurement:Current Primary Nominal Value: 500 A Accuracy: 0.45 % Mounting : - Measuring Range: 1200 A Supply Voltage: 15 - 24 Supply voltage type Bipolar Secondary Signal:100 mA
|
|
| LT508-S6 |
|
LT508-S6--LT508-S6
Ouput Relay Type: Instantaneous Technology: Closed loop Hall Efeect Measurement:Current Primary Nominal Value: 500 A IP Accuracy:0.45% Mounting:- Measuring Range: ± 500 A RM Supply Voltage: @ RM min RM ma x with ± 12 V @ ± 300 A max 0 40 W @ ± 800 A max 0 5 W with ± 18 V @ ± 500 A max 0 60 W @ ± 800 A max 0 15 W ISN Supply voltage type Bipolar Secondary Signal:100 mA Change Rate:1:2000
|
|
| LT308-S6 |
|
LT308-S6--LT308-S6
Ouput Relay Type: Instantaneous Technology: Closed loop Hall Efeect Measurement:Current Primary Nominal Value: 500 A IP Accuracy:0.45% Mounting:- Measuring Range: ± 800 A RM Supply Voltage: @ RM min RM ma x with ± 15 V @ ± 300 A max 0 50 W @ ± 300 A max 0 72 W with ± 15 V @ ± 500 A max 0 30 W @ ± 300 A max 0 40 W ISN Supply voltage type Bipolar Secondary Signal:100 mA Change Rate:1:2000
|
|

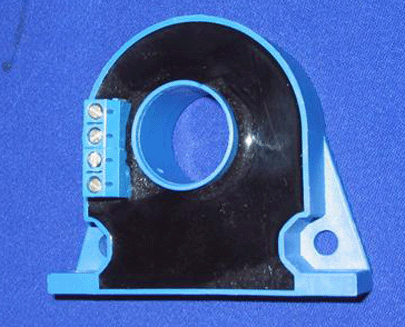

| LT308-S7/SP1 |
 |
LT308-S7/SP1--LT308-S7/SP1
Ouput Relay Type: Instantaneous Technology: Closed loop Hall Efeect Measurement:Current Primary Nominal Value: 300 A IP Accuracy:0.45% Mounting:- Measuring Range: ± 300 A RM Supply Voltage: @ RM min RM ma x with ± 12 V @ ± 300 A max 0 70 W @ ± 300 A max 0 43 W with ± 15 V @ ± 300 A max 017W @ ± 300 A max 0 40 W ISN Supply voltage type Bipolar Secondary Signal:150 mA Change Rate:1:2000
|
|

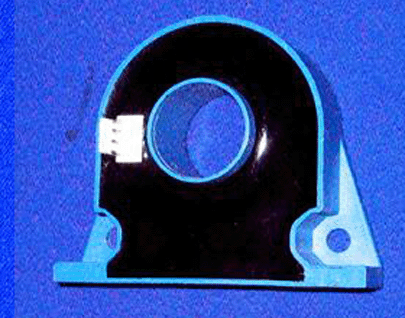

| LT208-S7/SP8 |
 |
LT208-S7/SP8--LT208-S7/SP8
Ouput Relay Type: Instantaneous Technology: Closed loop Hall Efeect Measurement:Current Primary Nominal Value: 200 A IP Accuracy:0.45% Mounting:- Measuring Range: ± 300 A RM Supply Voltage: @ RM min RM ma x with ± 12 V @ ± 200 A max 0 50 W @ ± 300 A max 0 26 W with ± 15 V @ ± 200 A max 0 73 W @ ± 300 A max 0 40 W ISN Supply voltage type Bipolar Secondary Signal:100 mA Change Rate:1:2000
|
|

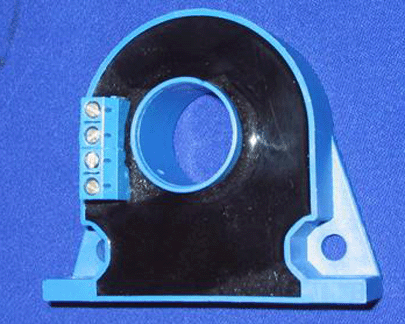

| LT208-S7/SP1 |
 |
LT208-S7/SP1--LT208-S7/SP1
Ouput Relay Type: Instantaneous Technology: Closed loop Hall Efeect Measurement:Current Primary Nominal Value: 200 A IP Accuracy:0.45% Mounting:- Measuring Range: ± 300 A RM Supply Voltage: @ RM min RM ma x with ± 12 V @ ± 200 A max 0 50 W @ ± 300 A max 0 26 W with ± 15 V @ ± 200 A max 0 73 W @ ± 300 A max 0 40 W ISN Supply voltage type Bipolar Secondary Signal:100 mA
|
|

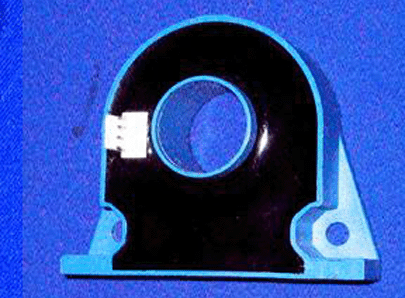

| LT208-S7 |
 |
LT208-S7--LT208-S7
Ouput Relay Type : Instantaneous Technology : Closed loop Hall Effect Measurement : Current Primary Nominal Value : 200 A Accuracy : 0.45 % Mounting : - Measuring Range : 300A Supply Voltage : 12 - 15 Supply voltage type Bipolar Secondary Signal : 200mA
|
|

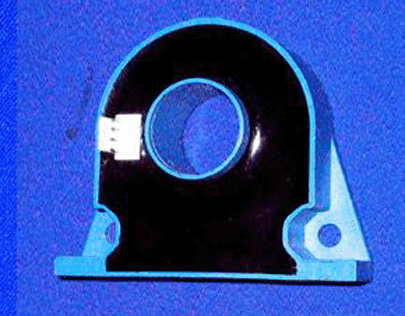

| LT108-S7/SP8 |
 |
LT108-S7/SP8--LT108-S7/SP8
Ouput Relay Type : Instantaneous Technology : Closed loop Hall Effect Measurement : Current Primary Nominal Value : 100 A Accuracy : 0.45 % Mounting : - Measuring Range : 150A Supply Voltage : 12 - 15 Supply voltage type Bipolar Secondary Signal : 100mA
|
|

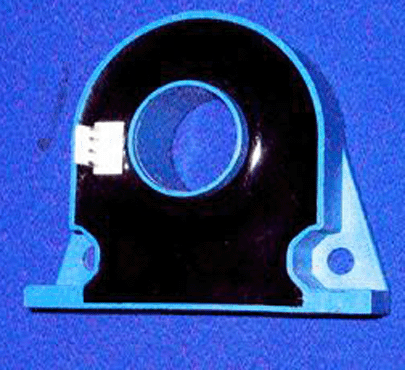

| LT108-S7 |
 |
LT108-S7--LT108-S7
Ouput Relay Type : Instantaneous Technology : Closed loop Hall Effect Measurement : Current Primary Nominal Value : 100 A Accuracy : 0.45 % Mounting : - Measuring Range : 150A Supply Voltage : 12 - 15 Supply voltage type Bipolar Secondary Signal : 100mA
|
|
| LT58-S7/SP8 |
|
LT58-S7/SP8--LT58-S7/SP8
Ouput Relay Type : Instantaneous Technology : Closed loop Hall Effect Measurement : Current Primary Nominal Value : 50 A Accuracy : 0.45 % Mounting : - Measuring Range : 70 A Supply Voltage : 12 - 15 Supply voltage type Bipolar Secondary Signal : 50 mA
|
|
| LT58-S7/SP1 |
|
LT58-S7/SP1--LT58-S7/SP1
Ouput Relay Type : Instantaneous Technology : Closed loop Hall Effect Measurement : Current Primary Nominal Value : 50 A Accuracy : 0.45 % Mounting : - Measuring Range : 70 A Supply Voltage : 12 - 15 Supply voltage type Bipolar Secondary Signal : 50 mA
|
|
| LT58-S7 |
|
LT58-S7--LT58-S7
Ouput Relay Type : Instantaneous Technology : Closed loop Hall Effect Measurement : Current Primary Nominal Value : 50 A Accuracy : 0.45 % Mounting : - Measuring Range : 70 A Supply Voltage : 12 - 15 Supply voltage type Bipolar Secondary Signal : 50 mA
|
|
| LA 200-P |
 |
LA 200-P (Series: LA 25-200 -P)--LA 200-P
Ouput Relay Type : Instantaneous
Technology : Closed loop Hall Effect
Measurement : Current
Primary Nominal Value : 200 A
Accuracy : 0.4 %
Mounting : -
Measuring Range : 300 A
Supply Voltage : 12 - 15
Supply voltage type Bipolar
Secondary Signal : 100 mA
|
|
| LA 100-P |
 |
LA 100-P (Series: LA 25-200 -P) --LA 100-P
Ouput Relay Type : Instantaneous
Technology : Closed loop Hall Effect
Measurement : Current
Primary Nominal Value : 100 A
Accuracy : 0.45 %
Mounting : -
Measuring Range : 150 A
Supply Voltage : 12 - 15
Supply voltage type Bipolar
Secondary Signal : 50 mA
|
|
| LA 55-P |
 |
LA 55-P (Series: LA 25-200 -P) --LA 55-P
Ouput Relay Type : Instantaneous
Technology : Closed loop Hall Effect
Measurement : Current
Primary Nominal Value : 50 A
Accuracy : 0.9 %
Mounting : -
Measuring Range : 70 A
Supply Voltage : 12 - 15
Supply voltage type Bipolar
Secondary Signal : 50 mA
|
|
| LA 25-NP |
 |
LA 25-NP (Series: LA 25-200 -P)--LA 25-NP
Ouput Relay Type : Instantaneous
Technology : Closed loop Hall Effect
Measurement : Current
Primary Nominal Value * : 5 A, 6 A, 8 A, 12 A, 25 A
Accuracy : 0.5 %
Mounting : -
Measuring Range : 36 A
Supply Voltage : 15 - 15
Supply voltage type Bipolar
Secondary Signal : 25 mA
|
|
| LTS 6-NP |
 |
LTS 6-NP (Series: LTS - LTSR - LTSP)--LTS 6-NP
Ouput Relay Type : Instantaneous
Technology : Closed loop Hall Effect
Measurement : Current
Primary Nominal Value * : 2 A, 3 A, 6 A
Accuracy : 0.7 %
Mounting : -
Measuring Range : 19.2 A
Supply Voltage : 5 - 5
Supply voltage type Unipolar
Secondary Signal : 625 mV
|
|
| LT4000-S |
 |
LT4000-S--LT4000-S
|
|
| LTS 25-NP |
 |
LTS 25-NP (Series: LTS - LTSR - LTSP) --LTS 25-NP
Ouput Relay Type : Instantaneous
Technology : Closed loop Hall Effect
Measurement : Current
Primary Nominal Value * : 8 A, 12 A, 25 A
Accuracy : 0.7 %
Mounting : -
Measuring Range : 80 A
Supply Voltage : 5 - 5
Supply voltage type Unipolar
Secondary Signal : 625 mV
|
|
